Description

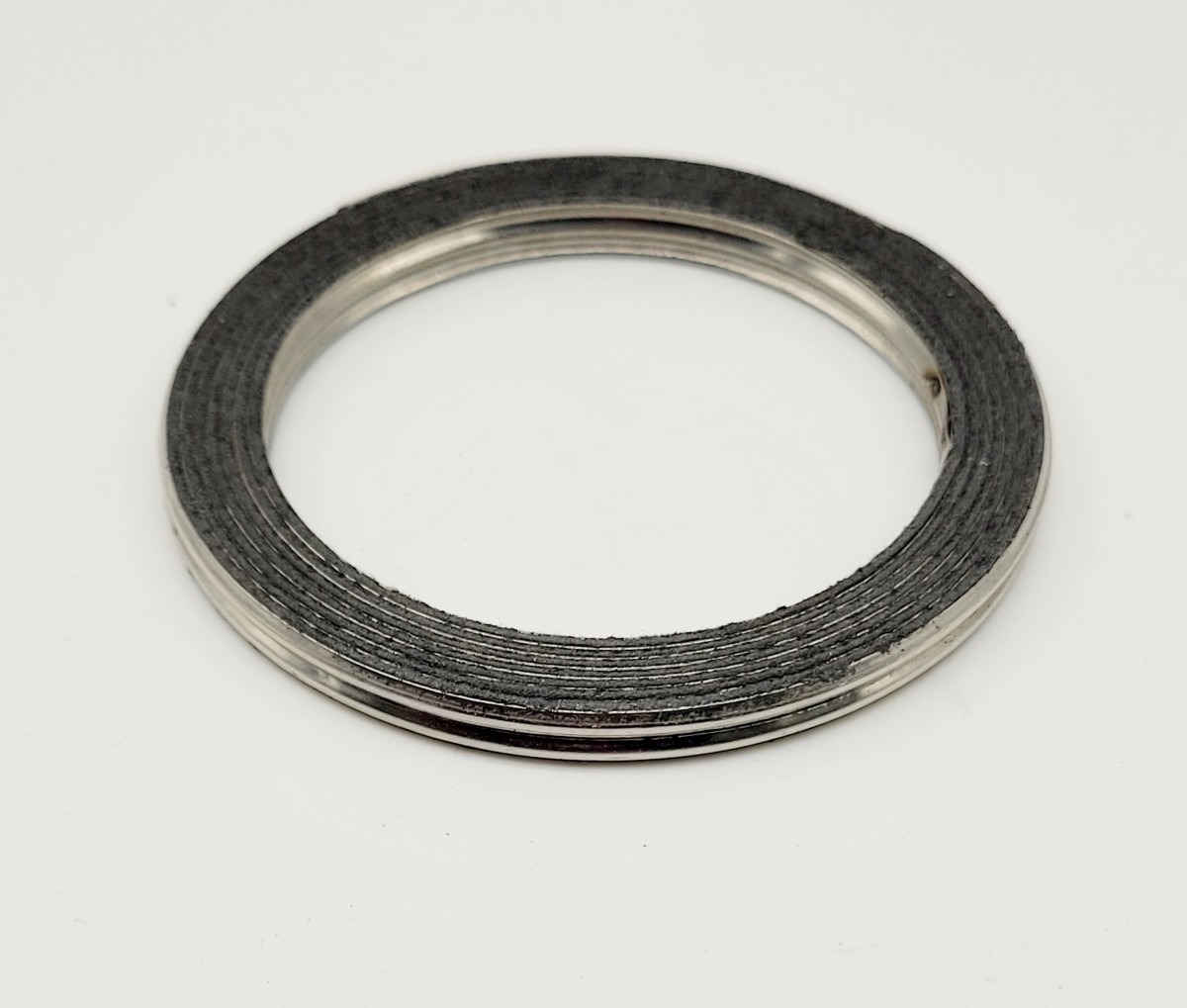

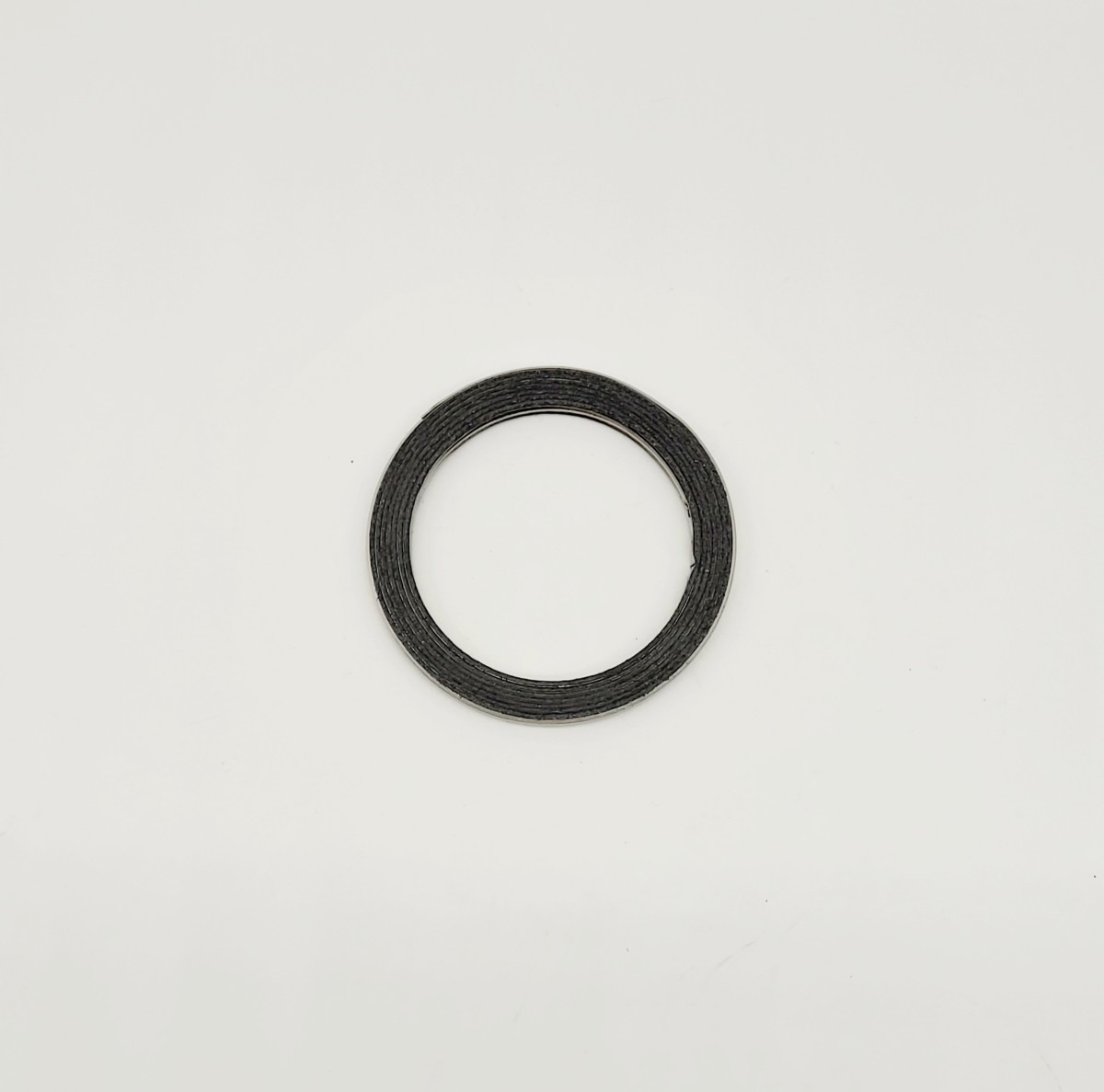

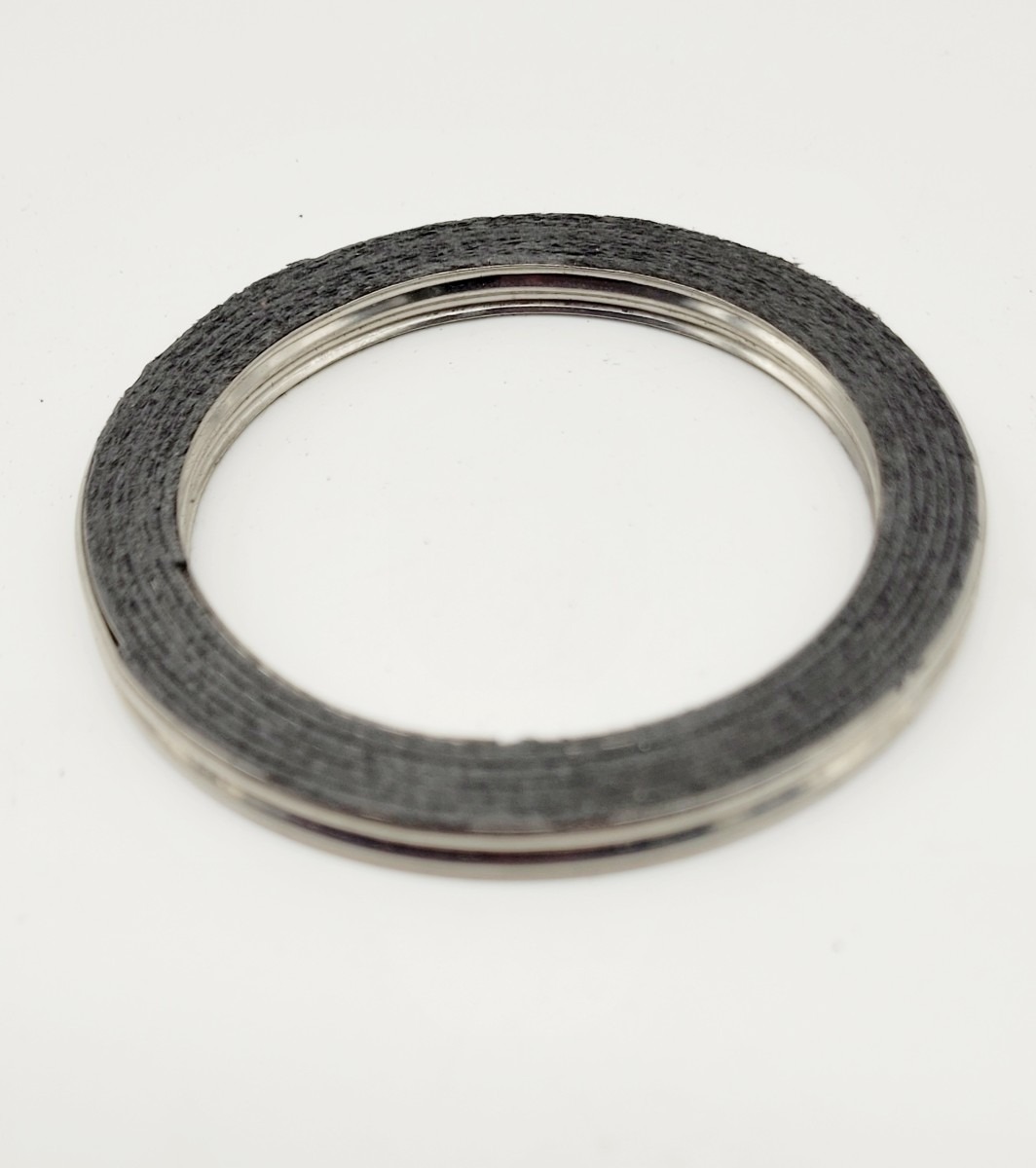

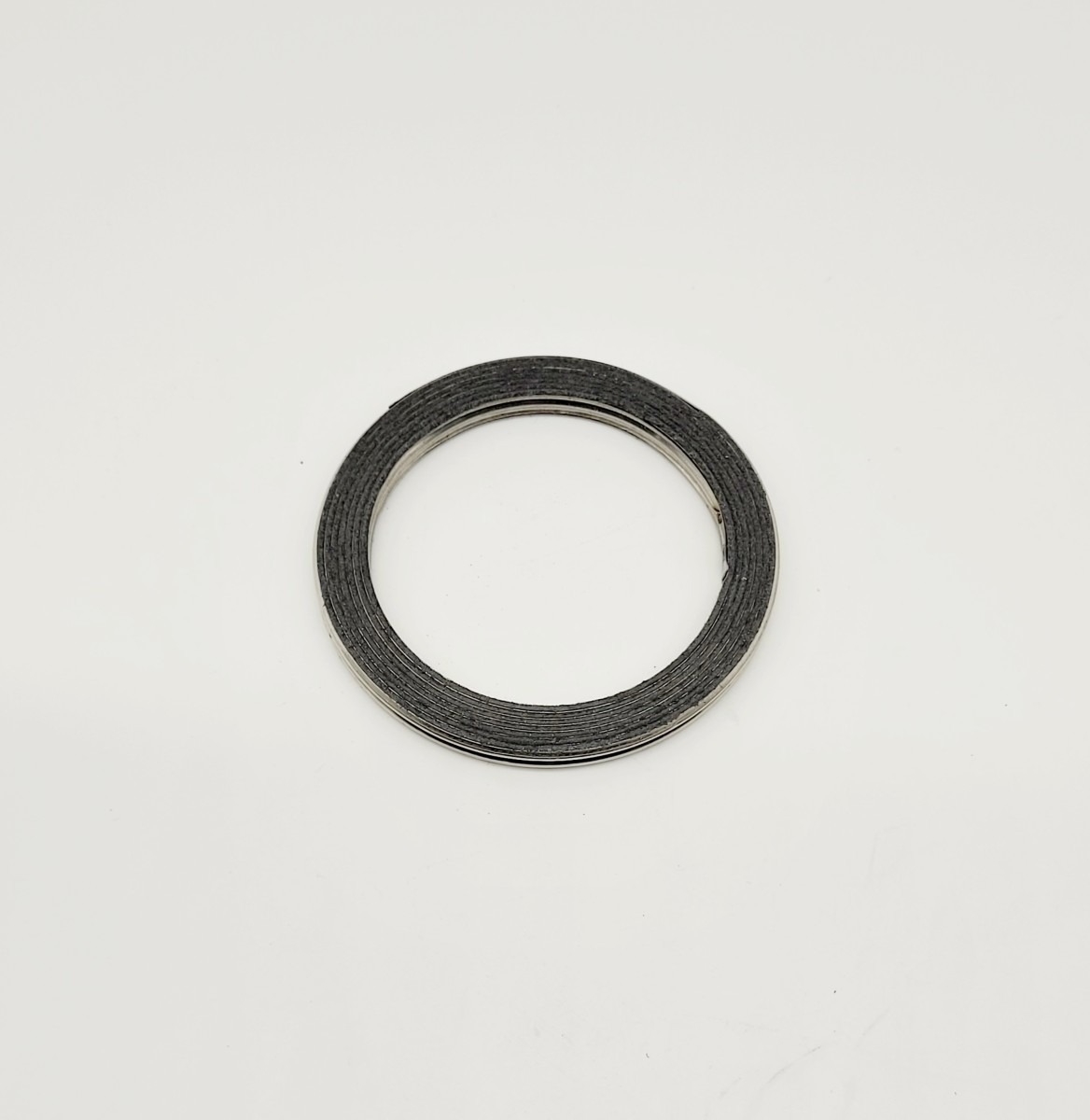

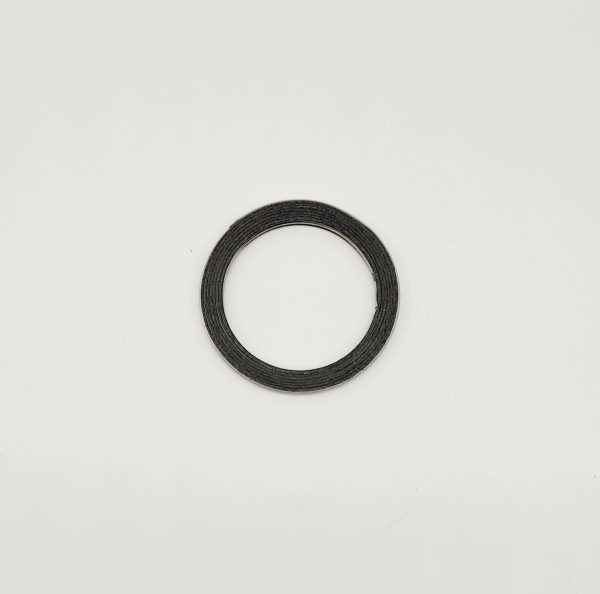

This is an exhaust ring gasket replacement.
An exhaust gasket is technically used in between connection points. It’s main function is to create a gas tight seal to prevent any leakage through the joint.
A faulty or weak gasket can result in MOT failure and more consumption of fuel, so it will best to replace the seal.
Specifications:
Inner Diameter: 49.7mm
Width: 7.7mm
Wall Thickness: 5.3mm
All sizes are approximate.
Part Number: CEG241
Klarius Part Number: TYG5
From our research, we know that this gasket will fit the following vehicles.
| MAKE | MODEL | OTHER INFORMATION | FITMENT |
| Daihatsu | Fourtrak 2.8D
Diesel Off-Road Hard Top |
1983-1993 2765cc (54 kW, 72 HP) 4WD Typ:F70 SWB, F75 LWB | 1 x Off Manifold |
| Fourtrak 2.8TD
Turbo Diesel Off-Road Hard Top |
09/1983-02/1989 2765cc (67 kW, 90 HP) 4WD Typ:F70 SWB, F75 LWB | 1 x Off Manifold | |
| Sportrak 1.6 Petrol
Off-Road Hard Top,Off-Road Soft Top |
06/1990-09/1993 1589cc (71 kW, 95 HP) Euro 2 4WD 301625 06/1990-03/1992 | 1 x Front
1 x Middle |
|
| Sportrak 1.6 Petrol
Off-Road Hard Top |
09/1993-04/1998 1589cc (71 kW, 95 HP) Euro 2 Typ:F300 | 1 x Front
1 x Middle |
|
| Isuzu | Trooper 3.1TD
Turbo Diesel Off-Road Hard Top |
03/1992-1996 3059cc (83 kW, 113 HP) 4WD | 1 x Off Manifold |
| Mazda | 2 1.4TD
Turbo Diesel Hatchback |
01/2008-09/2014, 1399cc (50kW 68HP), Eng:Y404, ch.no.JMZDE>, Euro 4,Euro 5
|
1 x Front
1 x Rear |
| 2 1.6TD
Turbo Diesel Hatchback |
10/2008-09/2014 1560cc (66kW 90HP) 1560cc (70kW 95HP) Eng:Y406,Y646,Y655,Y661 ch.no.JMZDE> Euro 5 | 1 x Front
1 x Rear |
|
| 323 2.0i
Petrol Hatchback |
08/2001-2004 1991cc (98 kW, 131 HP) Eng:FS Euro 3 | 1 x Rear | |
| 323 F 1.6i
16v Petrol Fastback |
10/2000-03/2002 1598cc (72 kW, 97 HP) Eng:ZM Euro 3 Manual | 1 x Middle | |
| 323 F 1.6i
16v Petrol Fastback |
03/2002-10/2003 1598cc (72 kW, 97 HP) Eng:ZM Euro 3 Manual | 1 x Middle | |
| 323 F 2.0i
Petrol Hatchback |
08/2001-2004 1991cc (98 kW, 131 HP) Eng:FS Euro 3 | 1 x Rear | |
| 5 2.0D,2.0TD
Diesel,Turbo Diesel MPV |
09/2009-2010 1998cc (81 kW, 109 HP)1998cc (105 kW, 141 HP) Eng:MZR-CD Euro 5 Typ:CR19 | 1 x Rear | |
| 6 1.8i
Petrol Estate,Saloon,Hatchback |
03/2002-12/2005 1798cc (88 kW, 118 HP) Eng:L813 Euro 3 | 1 x Rear | |
| 6 1.8i
Petrol Estate,Saloon,Hatchback |
01/2005-01/2006 1798cc (88 kW, 118 HP) Eng:L813 Euro 4 | 1 x Rear | |
| 6 2.0DiTD
Turbo Diesel 16v Estate,Saloon,Hatchback |
06/2001-01/2004 1998cc (89 kW, 119 HP) 1998cc (100 kW, 134 HP) Euro 3 | 1 x Rear | |
| 6 2.0DiTD
Turbo Diesel 16v Estate,Saloon,Hatchback |
01/2004-05/2005 1998cc (89 kW, 119 HP) 1998cc (100 kW, 134 HP) Euro 3 | 1 x Rear | |
| 6 2.0TD
Turbo Diesel Saloon,Hatchback |
06/2005-08/2007 1998cc (105 kW, 141 HP) Eng:MZR-CD Euro 4 Typ:GG12,GG14,GY19 | 1 x Rear | |
| 6 2.0i
Petrol Estate,Saloon,Hatchback |
03/2005-09/2007 1999cc (110 kW, 147 HP) Eng:LFH1 Euro 4 Typ:GG12,GG14 | 2 x Rear | |
| 6 2.3i
Petrol Estate,Saloon,Hatchback |
11/2002-03/2005 2261cc (123 kW, 165 HP) Euro 3 | 2 x Rear | |
| 6 2.3i
Petrol Estate,Saloon,Hatchback |
03/2005-09/2007 2261cc (122 kW, 166 HP) Eng:L3C1 Euro 4 Typ:GG12,GG14 | 2 x Rear | |
| 626 1.8i
Petrol Hatchback |
07/1997-09/1998 1840cc (65 kW, 89 HP) Eng:FP Euro 2 | 1 x Middle
1 x Rear |
|
| 626 1.8i
Petrol Saloon,Hatchback |
10/1999-05/2002 1840cc (65 kW, 89 HP) Eng:FP Euro 3 Twin Catalyst System | 1 x Middle
1 x Rear |
|
| 626 2.0i
Petrol Saloon,Hatchback |
04/1997-07/1999 1991cc (84 kW, 113 HP) 1991cc (103 kW, 138 HP) Eng:FS Euro 2 | 1 x Middle
1 x Rear |
|
| 626 2.0i
Petrol Estate |
06/1997-12/1999 1991cc (83 kW, 113 HP) Eng:FS Euro 2 | 1 x Middle
1 x Rear |
|
| 626 2.0i
Petrol Saloon,Hatchback |
03/2001-10/2002 1991cc (83 kW, 113 HP) Eng:FS Euro 3 Twin Catalyst System | 1 x Rear | |
| 626 2.0i
Petrol Saloon,Hatchback |
08/1999-02/2001 1991cc (83 kW, 113 HP) Eng:FS Twin Catalyst System | 1 x Rear | |
| Premacy 1.8i
Petrol MPV |
03/2001-06/2001 1840cc (74 kW, 99 HP) Eng:FPE1,F5K2 Euro 3 Manual Typ:CP19 | 1 x Middle
1 x Rear |
|
| Premacy 1.8i
Petrol MPV |
07/2001-08/2005 1840cc (74 kW, 99 HP) Eng:FPE1,F5K2 Euro 3 Typ:CP19 | 1 x Middle
1 x Rear |
|
| Premacy 1.8i
Petrol MPV |
03/1999-02/2001 1840cc (74 kW, 99 HP) Eng:FPE1,F5K2 Typ:CP19 | 1 x Middle
1 x Rear |
|
| Premacy 2.0i
16v Petrol MPV |
07/2001-08/2005 1991cc (98 kW, 131 HP) Euro 3 Manual Typ:CP | 1 x Middle
1 x Rear |
|
| Suzuki | Baleno 1.6i
Petrol Hatchback,3 Door |
05/1995-04/1998 1590cc (72 kW, 97 HP) Eng:G16B Euro 2 Typ:SY416 ch.no.JSAEGA31S00107759> | 1 x Middle |
| Baleno 1.6i
Petrol Saloon,4 Door |
05/1995-10/2000 1590cc (72 kW, 97 HP) Eng:G16B Euro 2 Typ:SY416 ch.no.JSAEGC31S00121188> | 1 x Middle | |
| Baleno 1.6i
Petrol Estate,5 Door |
10/1996-06/1999 1590cc (72 kW, 97 HP) Eng:G16B Euro 2 Typ:SY416 | 1 x Middle | |
| Baleno 1.6i
Petrol Hatchback,3 Door |
05/1995-04/1998 1590cc (72 kW, 97 HP) Eng:G16B Euro 2 Typ:SY416 ch.no.>JSAEGA31S00107758 | 1 x Middle | |
| Baleno 1.6i
Petrol Saloon,4 Door |
05/1995-10/2000, 1590cc (72 kW, 97 HP), Eng:G16B, Euro 2, Typ:SY416, ch.no.>JSAEGC31S00121187
|
1 x Middle | |
| Baleno 1.8i
Petrol Saloon,4 Door |
08/1996-10/1997 1839cc (90 kW, 121 HP) Eng:J18A Euro 2 Typ:SY418 ch.no.JSAEGC41S00101292> | 1 x Middle | |
| Baleno 1.8i
Petrol Saloon,4 Door |
08/1996-10/1997, 1839cc (90 kW, 121 HP), Eng:J18A, Euro 2, Typ:SY418, ch.no.>JSAEGC41S00101291 | 1 x Middle | |
| Liana 1.6i
16v Petrol Saloon,Hatchback |
06/2001-01/2006 1586cc (78 kW, 105 HP) Eng:M16A Euro 3 | 1 x Middle | |
| Vitara 2.0TD
Turbo Diesel Off-Road Hard Top |
01/1996-07/1998 1998cc (64 kW, 87 HP) Euro 2 | 1 x Middle | |
| Toyota | Auris 1.33VVT-i
Petrol Hatchback |
11/2008-04/2009, 1329cc (74 kW, 101 HP), Eng:1NRFE, Euro 4, Typ:NRE150, UK Production ch.no. SB…
|
1 x Front
1 x Rear |
| Auris 1.33VVT-i
Petrol Hatchback |
05/2009-09/2012 1329cc (74 kW, 101 HP) Eng:1NRFE Euro 4,Euro 5 Typ:NRE150 UK Production ch.no. SB… | 1 x Front
1 x Rear |
|
| Auris 1.33VVT-i
Petrol Hatchback |
05/2009-09/2012 1329cc (74 kW, 101 HP) Eng:1NRFE Euro 4,Euro 5 Typ:NRE150 Japanese Production ch.no. JT… | 1 x Front
1 x Rear |
|
| Auris 1.4VVT-i
Petrol Hatchback |
02/2007-09/2012 1398cc (71 kW, 97 HP) Eng:4ZZFE Euro 4 Typ:ZZE150 UK Production ch.no. SB… | 1 x Rear | |
| Auris 1.4VVT-i
Petrol Hatchback |
02/2007-09/2012 1398cc (71 kW, 97 HP) Eng:4ZZFE Euro 4 Typ:ZZE150 Japanese Production ch.no. JT… | 1 x Rear | |
| Auris 1.6VVT-i
Petrol Hatchback |
02/2007-02/2009 1598cc (91 kW, 124 HP) Eng:1ZRFE Euro 4 Typ:ZRE151 UK Production ch.no. SB… | 1 x Rear | |
| Auris 1.6VVT-i
Petrol Hatchback |
05/2009-09/2012 1598cc (97 kW, 132 HP) Eng:1ZR-FAE Typ:ZRE151 Euro 5 | 1 x Rear | |
| Auris 1.6VVT-i
Petrol Hatchback |
02/2007-12/2008 1598cc (91 kW, 124 HP) Eng:1ZRFE Euro 4 Typ:ZRE151 Japanese Production ch.no. JT… | 1 x Rear | |
| Auris 2.0D-4D
Turbo Diesel Hatchback,3 Door |
02/2007-03/2009 1995cc (94 kW, 126 HP) Eng:1ADFTV Euro 4 Typ:ADE150 UK Production ch.no. SB… | 1 x Rear | |
| Auris 2.0D-4D
Turbo Diesel Hatchback,5 Door |
02/2007-03/2009 1998cc (93 kW, 126 HP) Eng:1ADFTV Euro 4 Typ:ADE150 UK Production ch.no. SB… | 1 x Rear | |
| Avensis 1.6VVTi
Petrol Estate,Saloon,Hatchback |
08/2000-2003 1598cc (81 kW, 109 HP) Eng:3ZZFE Euro 3 Typ:ZZT220 UK Production. ch.no. SB… | 1 x Middle | |
| Avensis 1.6VVTi
Petrol Estate,Saloon,Hatchback |
08/2000-2003 1598cc (81 kW, 110 HP) Eng:3ZZFE Euro 3 Typ:ZZT220 Japanese Production. ch.no. JT… | 1 x Middle | |
| Avensis 1.6i
Petrol Estate,Saloon,Hatchback |
10/1997-08/2000 1587cc (74 kW, 99 HP) Eng:4AFE Euro 2 Typ:AT220 | 1 x Middle | |
| Avensis 1.8VVTi
Petrol Hatchback |
07/2000-01/2003 1794cc (95 kW, 127 HP) Eng:1ZZFE Euro 3 | 1 x Middle | |
| Avensis 1.8i
Petrol Estate,Saloon,Hatchback |
10/1997-08/2000 1762cc (79 kW, 108 HP) Eng:7AFE Euro 2 Typ:AT221 | 1 x Middle | |
| Avensis 2.0i
Petrol Estate,Saloon,Hatchback |
10/1997-08/2000 1998cc (92 kW, 126 HP) Eng:3SFE Euro 2 Typ:ST220 | 1 x Front
1 x Middle |
|
| Carina E 1.6i
16v Petrol Saloon,Hatchback |
11/1994-03/1996 1587cc (86 kW, 115 HP) Euro 2 Typ:AT190 | 1 x Front
1 x Middle |
|
| Carina E 1.6i
16v Petrol Estate |
05/1992-01/1996 1587cc (86 kW, 115 HP) Euro 2 Typ:AT190 | 1 x Front
1 x Middle |
|
| Carina E 1.6i
16v Petrol Estate,Saloon,Hatchback |
01/1996-11/1997 1587cc (86 kW, 115 HP) Euro 2 Typ:AT190 | 1 x Front
1 x Middle |
|
| Carina E 1.6i
16v Petrol Saloon,Hatchback |
05/1992-10/1994 1587cc (86 kW, 115 HP) Euro 2 Typ:AT190 | 1 x Front
1 x Middle |
|
| Carina E 1.8i
Petrol Estate,Saloon,Hatchback |
12/1994-01/1996 1762cc (77 kW, 103 HP) Eng:7AFE Euro 2 Typ:AT191 | 1 x Front
1 x Middle |
|
| Carina E 1.8i
Petrol Estate,Saloon,Hatchback |
01/1996-11/1997 1762cc (79 kW, 106 HP) Eng:7AFE Euro 2 Typ:AT191 | 1 x Front
1 x Middle |
|
| Carina E 2.0i
Petrol Hatchback,Saloon,Estate |
01/1996-11/1997 1998cc (99 kW, 133 HP) Euro 2 Typ:AT191 | 1 x Front
1 x Middle |
|
| Celica 1.8i
ST Petrol Coupe |
07/1995-06/1996 1762cc (84 kW, 114 HP) Eng:7AFE Euro 2 Typ:AT200 | 1 x Rear | |
| Celica 1.8i
ST Petrol Coupe |
07/1996-08/1999 1762cc (84 kW, 114 HP) Eng:7AFE Euro 2 Typ:AT200 | 1 x Rear | |
| Celica 2.0i
GT 16v Petrol Liftback,Cabriolet |
10/1985-02/1990 1998cc (112 kW, 150 HP) Eng:3S-GEL Typ:ST162 | 1 x Middle
1 x Rear |
|
| Celica 2.0i
GT Petrol Coupe |
02/1990-05/1992 1998cc (116 kW, 158 HP) Eng:3SGE Typ:ST182 | 1 x Rear | |
| Celica 2.0i
Petrol Coupe,Cabriolet |
05/1992-02/1994, 1998cc (115 kW, 156 HP), Eng:3SGE, Euro 2, Typ:ST182
|
1 x Rear | |
| Celica 2.0i
Petrol Cabriolet,Coupe |
06/1996-10/1999 1998cc (127 kW, 173 HP) Eng:3SGE Euro 2 Typ:ST202 | 1 x Rear | |
| Celica 2.0i
Petrol Cabriolet,Coupe |
10/1993-06/1996 1998cc (127 kW, 173 HP) Eng:3SGE Euro 2 Typ:ST202 | 1 x Rear | |
| Corolla 1.6i
GTi 16v Petrol Hatchback,3 Door |
08/1987-08/1992 1587cc (93 kW, 125 HP) Eng:4AGE Typ:AE92 | 1 x Front
1 x Rear |
|
| Corolla 2.0D
Diesel Estate,Liftback,Saloon |
05/1997-02/2000 1975cc (52 kW, 71 HP) Eng:2CE Euro 2 Manual Typ:CE110 | 1 x Front
1 x Middle |
|
| Corolla 2.0D
Diesel Liftback,Saloon |
05/1993-04/1997 1975cc (54 kW, 72 HP) Eng:2C Euro 2 Typ:CE100 | 1 x Front
1 x Middle |
|
| Estima Lucida 2.2TD
Turbo Diesel MPV |
01/1992-12/1999 2184cc (74 kW, 100 HP) Eng:3CT Typ:CXR | 1 x Off Manifold
1 x Middle |
|
| Hi-Ace 2.4D
Diesel Van |
08/1989-08/1995 2446cc (55 kW, 76 HP) Eng:2L Typ:LH102, LH112 | 1 x Front | |
| Hi-Ace 2.4D
Diesel Minibus,Van |
08/1995-11/2001 2446cc (57 kW, 76 HP) Eng:2L Typ:LXH12, LXH22 Euro 2,Euro 3 | 1 x Front
1 x Middle |
|
| Hi-Ace 2.4D
Diesel Minibus,Van |
08/1995-02/2001 2446cc (57 kW, 76 HP) Eng:2L Typ:LXH12, LXH22 | 1 x Front
1 x Middle |
|
| Hi-Ace 2.4D
Diesel Minibus,Van |
03/2000-03/2001 2446cc (57 kW, 76 HP) Eng:2L Euro 3 Typ:LXH12, LXH22 | 1 x Front
1 x Middle |
|
| Hi-Ace 2.4i
Petrol Van |
08/1995-04/19982438cc (87 kW, 118 HP) Eng:2RZE Typ:RCH12,22 | 1 x Front
1 x Middle |
|
| Hi-Lux 2.4D
Diesel Pick-Up |
08/1988-10/1997 2446cc (55 kW, 74 HP) Eng:2L 4WD Typ:LN105 | 1 x Middle | |
| Hi-Lux 2.4D
Turbo Diesel Pick-Up |
01/1992-08/1995 2445cc (59 kW, 79 HP) 2445cc (62 kW, 83 HP) Eng:2L SWB Typ:LN85 | 1 x Middle | |
| Hi-Lux 2.4TD
Turbo Diesel 8v Pick-Up |
08/1997-08/2001 2446cc (66 kW, 89 HP) Eng:2LT 4WD Typ:LN165 | 1 x Middle | |
| Hi-Lux 2.4TD
Turbo Diesel 8v Pick-Up |
08/1997-08/20012446cc (66 kW, 89 HP) Eng:2LT 4WD Typ:LN170 | 1 x Middle | |
| Landcruiser 2.4TD
Turbo Diesel Off-Road Hard Top |
04/1988-01/1990 2446cc (66 kW, 89 HP) Eng:2LT SWB Typ:LJ70 Use existing bracket on vehicle for TY347C | 1 x Front
1 x Middle |
|
| Landcruiser 4.7
Petrol Off-Road Hard Top |
01/1998-08/2007 4664cc (173 kW, 235 HP) 4664cc (175 kW, 238 HP) Eng:2UZFE Euro 2,Euro 3,Euro 4 | 1 x Off Manifold
1 x Front |
|
| MR2 2.0i
Petrol Coupe |
12/1989-12/1991 1998cc (115 kW, 156 HP) Eng:3SGE Euro 2 Typ:SW20 | 2 x Off Manifold | |
| MR2 2.0i
Petrol Coupe |
12/1991-11/1993 1998cc (115 kW, 156 HP) Eng:3SGE Euro 2 Typ:SW20 | 2 x Off Manifold | |
| Picnic 2.0i
Petrol MPV |
09/1996-01/2001 1998cc (90 kW, 121 HP) 1998cc (94 kW, 126 HP) Eng:3SFE Euro 2 Typ:SXM10 | 1 x Front | |
| Picnic 2.2TD
Turbo Diesel MPV |
08/1997-09/2001 2184cc (63 kW, 86 HP) Eng:3CTE Typ:CXM10 | 1 x Front | |
| RAV4 1.8i
Petrol Off-Road Hard Top,5 Door LWB |
05/2000-10/2005 1794cc (93 kW, 125 HP) Eng:1ZZFE Euro 3 Typ:ZCA26 Note: 322771
does not fit ZCA25 engine |
1 x Rear | |
| RAV4 1.8i
Petrol Off-Road Hard Top,3 Door SWB |
05/2000-10/2005 1794cc (93 kW, 125 HP) Eng:1ZZFE Euro 3 Typ:ZCA26 Note: 323770 does not fit ZCA25 engine | 1 x Rear | |
| RAV4 2.0D-4D
Turbo Diesel 16v Off-Road Hard Top |
09/2001-11/2005 1995cc (85 kW, 114 HP) Eng:1CDFTV Euro 3 Typ:CLA20, CLA21 | 1 x Rear | |
| RAV4 2.0i
Petrol Off-Road Hard Top |
04/1994-08/1996 1998cc (96 kW, 129 HP) Eng:3SFE Euro 2 Typ:SXA10 | 1 x Front
1 x Middle 1 x Rear |
|
| RAV4 2.0i
Petrol Off-Road Hard Top |
08/1996-09/1997 1998cc (96 kW, 129 HP) Eng:3SFE Euro 2 Typ:SXA10 | 1 x Front
1 x Middle 1 x Rear |
|
| RAV4 2.0i
Petrol Off-Road Hard Top |
09/1997-08/1998 1998cc (96 kW, 129 HP) Eng:3SFE Euro 2 Typ:SXA10 | 1 x Front
1 x Middle 1 x Rear |
|
| RAV4 2.0i
Petrol Off-Road Hard Top |
08/1998-08/2000 1998cc (96 kW, 129 HP) Eng:3SFE Euro 2 Typ:SXA10 | 1 x Front
1 x Middle 1 x Rear |
|
| RAV4 2.0i
16v Petrol Off-Road Hard Top |
08/2000-08/2003 1998cc (110 kW, 148 HP) Eng:1AZFE Euro 3 Typ:ACA20, ACA21 | 1 x Rear | |
| RAV4 2.0i
16v PetrolOff-Road Hard Top |
08/2003-10/2005 1998cc (110 kW, 148 HP) Eng:1AZFE Euro 3 Typ:ACA20, ACA21 | 1 x Rear | |
| Vauxhall | Monterey 3.1TD
Turbo Diesel Off-Road Hard Top |
1994-10/1995 3059cc (83 kW, 113 HP)
There is a valve assembly between IZ25L and IZ26K / IZ27J. |
1 x Off Manifold |
| Volkswagen | Taro 2.4D
Diesel Pick-Up |
08/1989-07/1994 2446cc (61 kW, 83 HP) 4WD | 1 x Middle |
Updated 2024
Disclaimer: The information we have provided may not be 100% accurate. Please inspect your vehicle prior to purchasing and double check with the sizes stated
Please see our shop to view more quality gaskets.
Buy with confidence from a well-established exhaust manufacturer!!
