Description

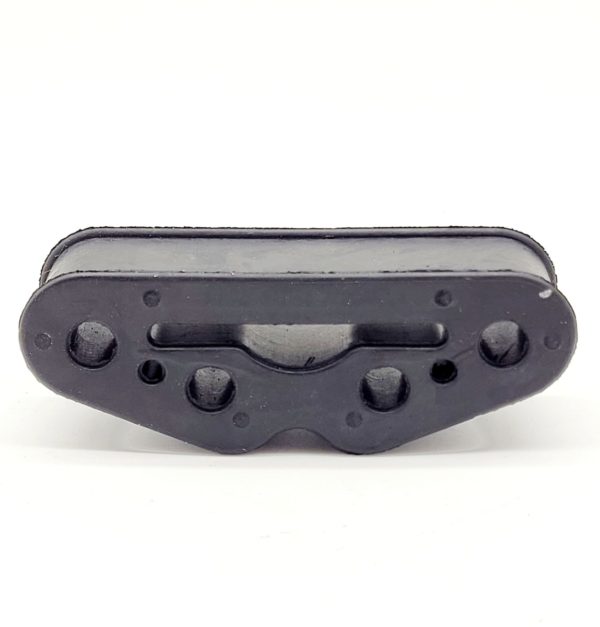

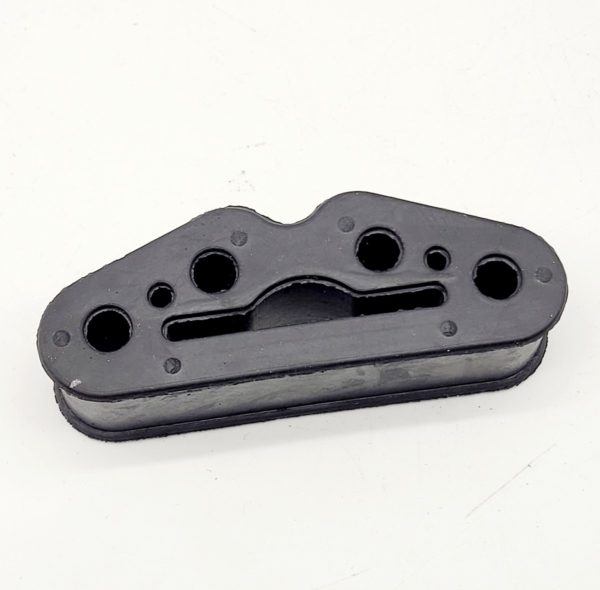

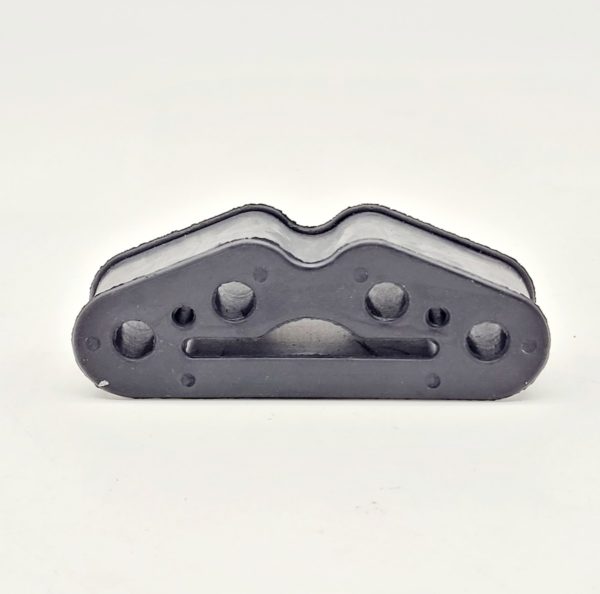

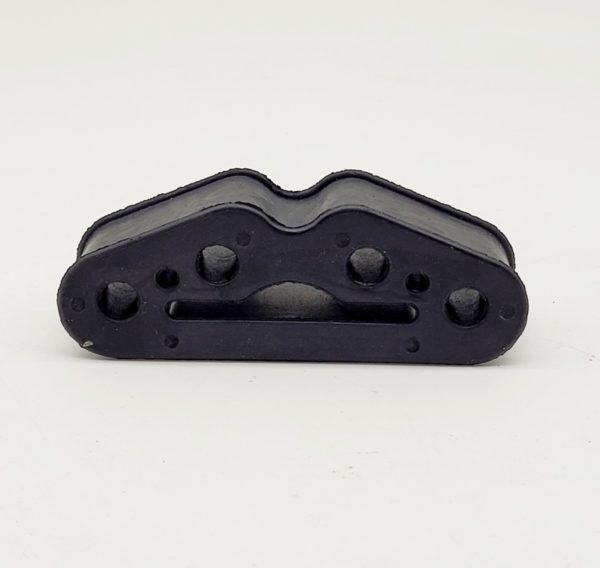

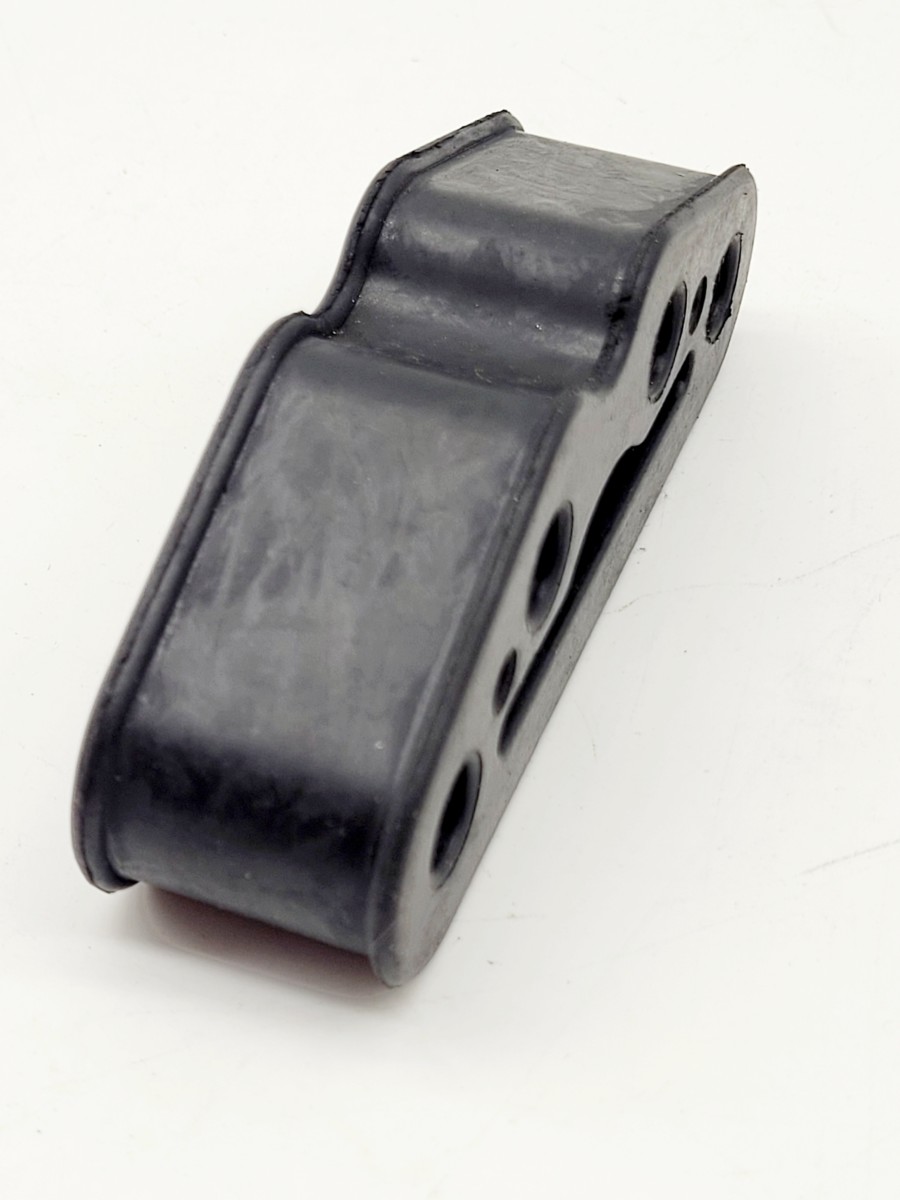

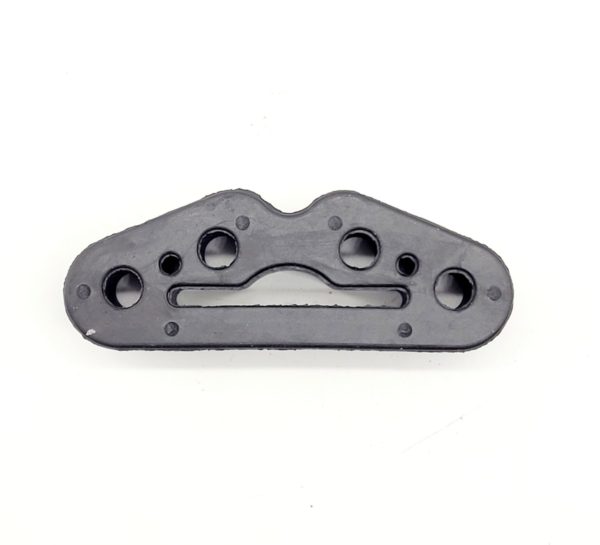

Exhaust brackets, hangers and rubber mounts are also known as exhaust supports. They are used to support and hang the exhaust to the underside of the vehicle.
Some Mounts are made from Rubber. These rubbers are durable and long lasting, designed to absorb vibrations and shocks from the engine and exhaust system, providing a bit of flex to the system therefore preventing the exhaust from being damaged.
Exhaust Mounts can typically last a long time, however they do need to be inspected and replaced overtime. A faulty or a weak hanger can result in your system being damaged. Replace it with our high quality, strengthened product.
Specifications:
Part Number: CSM230
Other Part Number (s): FTR20
Will fit: See table below…
From our research, we know that this rubber mount will fit the following vehicles.
Disclaimer: The information we have provided below may not be 100% accurate. Please inspect your vehicle and see your old mounts prior to purchasing.
| MAKE | MODEL | OTHER INFORMATION | FITMENT |
| Fiat | Doblo 1.2i
Petrol Estate,Van |
02/2001-12/2003 1242cc (48 kW, 65 HP) Eng:223A5.000 Euro 3 | 1 x Rear |
| Doblo 1.3JTD
Turbo Diesel Estate,Van |
01/2004-12/2006 1248cc (51 kW, 70 HP) Eng:188A9000 Euro 4 | 1 x Rear
|
|
| Doblo 1.3JTD
Turbo Diesel Van |
11/2005-12/2007
1248cc (55 kW, 75 HP) Eng:199A2000 Euro 4 |
1XRear | |
| Doblo 1.3JTD
Turbo Diesel Van,Estate |
02/2006-12/2009
1245cc (62 kW, 83 HP) Eng:223A9.000 Euro 4 Typ:223AXN1A |
1x Rear | |
| Doblo 1.3JTD
Turbo Diesel Van,Estate |
09/2009-2010
1245cc (62 kW, 83 HP) Eng:223A9.000 Euro 5 Typ:223AXN1A |
1x Rear | |
| Doblo 1.3D MultiJet
Turbo Diesel MPV,Van |
02/2010> 1248cc (66 kW, 90 HP) Eng:199A3000,263A2000 Euro 6
Typ:263 SWB |
1x Rear | |
| Doblo 1.3D MultiJet
Turbo Diesel MPV,Van |
02/2010>
1248cc (66 kW, 90 HP) Eng:199A3000,263A2000 Euro 6 Typ:263 LWB |
1xRear | |
| Doblo 1.4i
Petrol Van,Estate |
12/2005-12/2009
1368cc (57 kW, 77 HP) Eng:350A1.000 Euro 4 |
1x Rear | |
| Doblo 1.4i
Petrol Van,Estate |
02/2010-09/2014
1368cc (70 kW, 95 HP) Eng:843A1.000 Euro 5 SWB |
2x Rear | |
| Doblo Cargo 1.4i
Petrol Van,Estate |
02/2010>
1368cc (70 kW, 95 HP) Eng:843A1.000 Euro 5,Euro 6 LWB |
2x Rear | |
| Doblo Cargo 1.4i
Petrol Van,Estate |
09/2014-12/2018
1368cc (70 kW, 95 HP) Eng:843A1.000 Euro 6 SWB |
2xRear | |
| Doblo 1.4i
Petrol Van,Estate |
09/2014-12/2018
1368cc (70 kW, 95 HP) Eng:843A1.000 Euro 6 LWB |
2x Rear | |
| Doblo 1.4i
Petrol Van,Estate |
09/2009-2010
1368cc (57 kW, 77 HP) Eng:350A1.000 Euro 5 |
1x Rear | |
| Doblo 1.6D Multijet
Turbo Diesel MPV,Van |
02/2010-09/2015 1598cc (66 kW, 90 HP) 1598cc (77 kW, 105 HP)
Eng:198A3000,263A5000 SWB Euro 5 |
2x Rear | |
| Doblo 1.6D Multijet
Turbo Diesel MPV,Van |
02/2010-09/2015 1598cc (66 kW, 90 HP)1598cc (77 kW, 105 HP)
Eng:263A3000,263A8000,263A9000 SWB Euro 5 |
2x Rear | |
| Doblo 1.6D Multijet
Turbo Diesel MPV,Van |
02/2010-09/2014 1598cc (66 kW, 90 HP) 1598cc (77 kW, 105 HP)
Eng:198A3000,263A5000 LWB Euro 5 |
2x Rear | |
| Doblo 1.6D Multijet
Turbo Diesel MPV,Van |
02/2010-09/2014 1598cc (66 kW, 90 HP) 1598cc (77 kW, 105 HP)
Eng:263A3000,263A8000,263A9000 LWB Euro 6 |
2x Rear | |
| Doblo 1.9D
Diesel Van,Estate |
02/2001-12/2005 1910cc (47 kW, 63 HP) Eng:223A 6.000 Euro 3
FT840C Catalyst Repair Pipe |
1x Rear | |
| Doblo 1.9JTD
Turbo Diesel 8v Van,Estate |
09/2001-12/2005 1910cc (74 kW, 99 HP) 1910cc (77 kW, 103 HP)
Eng:182B9.000,223A7.000 Euro 3 FT806C Catalyst Repair Pipe |
1xRear | |
| Doblo 1.9JTD
Turbo Diesel Van,Estate |
12/2005-12/2009 1910cc (89 kW, 120 HP) Eng:186A9.000 Euro 4
Typ:223AXH1A 390172 NOT supplied with pressure pipes |
1xRear | |
| Doblo 1.9JTD
Turbo Diesel Van,Estate |
09/2009-2010 1910cc (89 kW, 120 HP) Eng:186A9.000 Euro 5
Typ:223AXH1A |
1x Rear | |
| Doblo 1.9JTD
Turbo Diesel Van,Estate |
01/2006-12/2009 1910cc (74 kW, 100 HP) 1910cc (77 kW, 105 HP)
Eng:182B9000,223A7000,223B1000 Euro 4 |
1xRear | |
| Doblo 1.9JTD
Turbo Diesel Van,Estate |
01/2009-2010 1910cc (74 kW, 100 HP) 1910cc (77 kW, 105 HP)
Eng:182B9000,223A7000,223B1000 Euro 5 |
1x Rear | |
| Idea 1.3JTD
Turbo Diesel 16v MPV |
10/2003-09/2005 1248cc (51 kW, 68 HP) Eng:188A9.000 Euro 3
Typ:350AXA,11350AXA1A,350BXA1A |
1x Rear | |
| Idea 1.3JTD
Turbo Diesel MPV |
02/2006-2007 1248cc (67 kW, 90 HP) Eng:199A3.000 Euro 4 | 1x Rear | |
| Idea 1.3JTD
Turbo Diesel 16v MPV |
09/2005-09/2006 1248cc (51 kW, 70 HP) Eng:188A9.000 Euro 4
|
1x Rear | |
| Idea 1.3JTD
Turbo Diesel 16v MPV |
01/2006-09/2006 1248cc (66 kW, 89 HP) Eng:199A3.000 Euro 4
|
1x Rear | |
| Idea 1.3JTD
Turbo Diesel 16v MPV |
10/2003-12/2005 1248cc (66 kW, 89 HP) Eng:199A3.000 Euro 3
|
1x Rear | |
| Punto 1.1i
55 Petrol Hatchback |
03/1994-05/1997 1108cc (40 kW, 54 HP) Eng:176A6.000 SPi Euro 2 | 1xRear | |
| Punto 1.1i
55 Petrol Hatchback |
03/1994-05/1997 1108cc (40 kW, 54 HP) Eng:176B2.000 Euro 2
Manual (5) |
1xRear | |
| Punto 1.1i
55 Petrol Hatchback,Van |
06/1994-05/1997 1108cc (40 kW, 54 HP) Eng:176B2.000 Euro 2
Manual (6) |
1xRear | |
| Punto 1.2i
75 Petrol Hatchback |
03/1994-08/1995 1242cc (56 kW, 75 HP) Eng:176A8.000 Euro 2 | 1xRear | |
| Punto 1.2i
75 Petrol Hatchback |
09/1995-08/1999 1242cc (56 kW, 75 HP) Eng:176A8.000 Euro 2
Remove pipe insert from FT808A |
1xRear | |
| Punto 1.2i
60Petrol Cabriolet,Hatchback |
03/1994-05/1997 1242cc (43 kW, 58 HP) Eng:176A7.000 SPi Euro 2 Manual 301023 >ch.no.0303403 | 1x Rear | |
| Punto 1.2i
60Petrol Cabriolet,Hatchback |
03/1994-08/1999 1242cc (43 kW, 58 HP) Eng:176B4.000 Euro 2 Manual | 1xRear | |
| Punto 1.2i
60 Selecta Petrol Hatchback |
06/1997-10/1999 1242cc (43 kW, 58 HP) Eng:176B4.000,SPi Euro 2
Automatic |
1x Rear | |
| Punto 1.2i
85 Sporting 16v Petrol Cabriolet,Hatchback |
05/1997-10/1999 1242cc (64 kW, 86 HP) Eng:176B9.000 Euro 2 | 1x Rear | |
| Punto 1.2i
8v Petrol Hatchback |
10/1999-09/2000 1242cc (45 kW, 60 HP) Eng:188A4.000 Euro 3 | 1x Rear | |
| Punto 1.2i
60, 60 Selecta Petrol Hatchback |
08/1994-10/1999 1242cc (43 kW, 58 HP) Eng:176A7.000 SPi Euro 2
Automatic |
1x Rear | |
| Punto 1.2i
8v Petrol Hatchback,Van |
09/2000-12/2005 1242cc (45 kW, 60 HP) Eng:188A4.000 Euro 3 | 1x Rear | |
| Punto 1.2i
8v Petrol Hatchback,Van |
01/2005-01/2006 1242cc (45 kW, 60 HP) Eng:188A4.000 Euro 4 | 1xRear | |
| Punto 1.2i
16v Petrol Hatchback |
11/1999-2008 1242cc (60 kW, 80 HP) Eng:188A5.000 Euro 4 | 1x Rear | |
| Punto 1.2i
16v Petrol Hatchback |
11/1999-12/2005 1242cc (60 kW, 80 HP) Eng:188A5.000 Euro 3 | 1x Rear | |
| Punto 1.2i
16v Petrol Hatchback |
11/1999-09/2000
1242cc (60 kW, 80 HP) Eng:188A5.000 Euro 2 |
1x Rear | |
| Punto 1.2i
16v Petrol Hatchback |
11/1999-02/2001 1242cc (60 kW, 80 HP) Eng:188A5.000 | 1x Rear | |
| Punto 1.3JTD
Turbo Diesel 16v Van,Hatchback |
07/2003-12/2005 1248cc (51 kW, 68 HP) Eng:188A9.000 Euro 3 | 1x Rear | |
| Punto 1.3JTD
Turbo Diesel 16v Van,Hatchback |
01/2005-01/2006 1248cc (51 kW, 68 HP) Eng:188A9.000 Euro 4 | 1x Rear | |
| Punto 1.4i
GT Turbo Hatchback |
03/1994-09/1994 1372cc (99 kW, 133 HP) Eng:176A4.000,MPI Euro 2 | 1xRear | |
| Punto 1.6i
90 Petrol Cabriolet,Hatchback |
08/1994-05/1997 1581cc (65 kW, 88 HP) Eng:176A9 MPi Euro 2
|
1x Rear | |
| Vauxhall | Combo 1.3CDTi
Turbo Diesel MPV,Van |
11/2011> 1248cc (66 kW, 90 HP) Eng:A13FD Euro 5,Euro 6 SWB | 1x Rear |
| Combo 1.3CDTi
Turbo Diesel MPV,Van |
11/2011> 1248cc (66 k W, 90 HP) Eng:A13FD Euro 6 LWB | 1x Rear | |
| Combo 1.3CDTi
Turbo Diesel MPV,Van |
11/2011-09/2014 1248cc (66 kW, 90 HP) Eng:A13FD Euro 5 LWB | 1xRear | |
| Combo 1.3CDTi
Turbo Diesel MPV,Van |
11/2011> 1248cc (66 kW, 90 HP) Eng:A13FD Euro 5+ LWB | 1xRear | |
| Combo 1.3CDTi
Turbo Diesel MPV,Van |
11/2011> 1248cc (66 kW, 90 HP) Eng:A13FD Euro 6 LWB
|
1x Rear | |
| Combo 1.4i
Petrol Van,Estate |
11/2011-09/2014 1368cc (70 kW, 95 HP) Eng:A14FP Euro 5 SWB
|
2x Rear | |
| Combo 1.4i
Petrol Van,Estate |
11/2011-09/2014 1368cc (70 kW, 95 HP) Eng:A14FP Euro 5 LWB | 2xRear | |
| Combo 1.4i
Petrol Van,Estate |
09/2014-12/2018 1368cc (70 kW, 95 HP) Eng:A14FP Euro 6 SWB
|
2xRear | |
| Combo 1.4i
Petrol Van,Estate |
09/2014-12/2018 1368cc (70 kW, 95 HP) Eng:A14FP Euro 6 LWB | 2xRear | |
| Combo 1.6CTDi
Turbo Diesel MPV,Van |
02/2010-12/2018 1598cc (66 kW, 90 HP) 1598cc (77 kW, 105 HP) Eng:A16FDH SWB Euro 6 | 2xRear | |
| Combo 1.6CDTi
Turbo Diesel MPV,Van |
02/2010-12/2018 1598cc (66 kW, 90 HP)1598cc (77 kW, 105 HP) Eng:A16FDH LWB Euro 6 | 2xRear |
Updated 2023
